All provinces and territories · Editable Word template

Powerline and utility construction safety manual template

A complete written health and safety program for contractors who build and maintain overhead and underground distribution and transmission lines, and for utility vegetation management crews working near energized lines, in every province and territory. It is laid out on the 14 national COR elements and written for the work: limits of approach for workers and equipment, the utility’s work protection and guarantee, testing and grounding at the worksite, induced voltage and stringing, live-line work, bucket trucks, digger derricks, pole climbing, and trees near lines. Section 15 sets out the law of every province and territory, and federal workplaces, side by side, with each jurisdiction’s line work and tree work rules. It arrives as an editable Word file you make your own.

A look inside

Sample pages from the manual, marked and cut short. Your copy has no watermark.

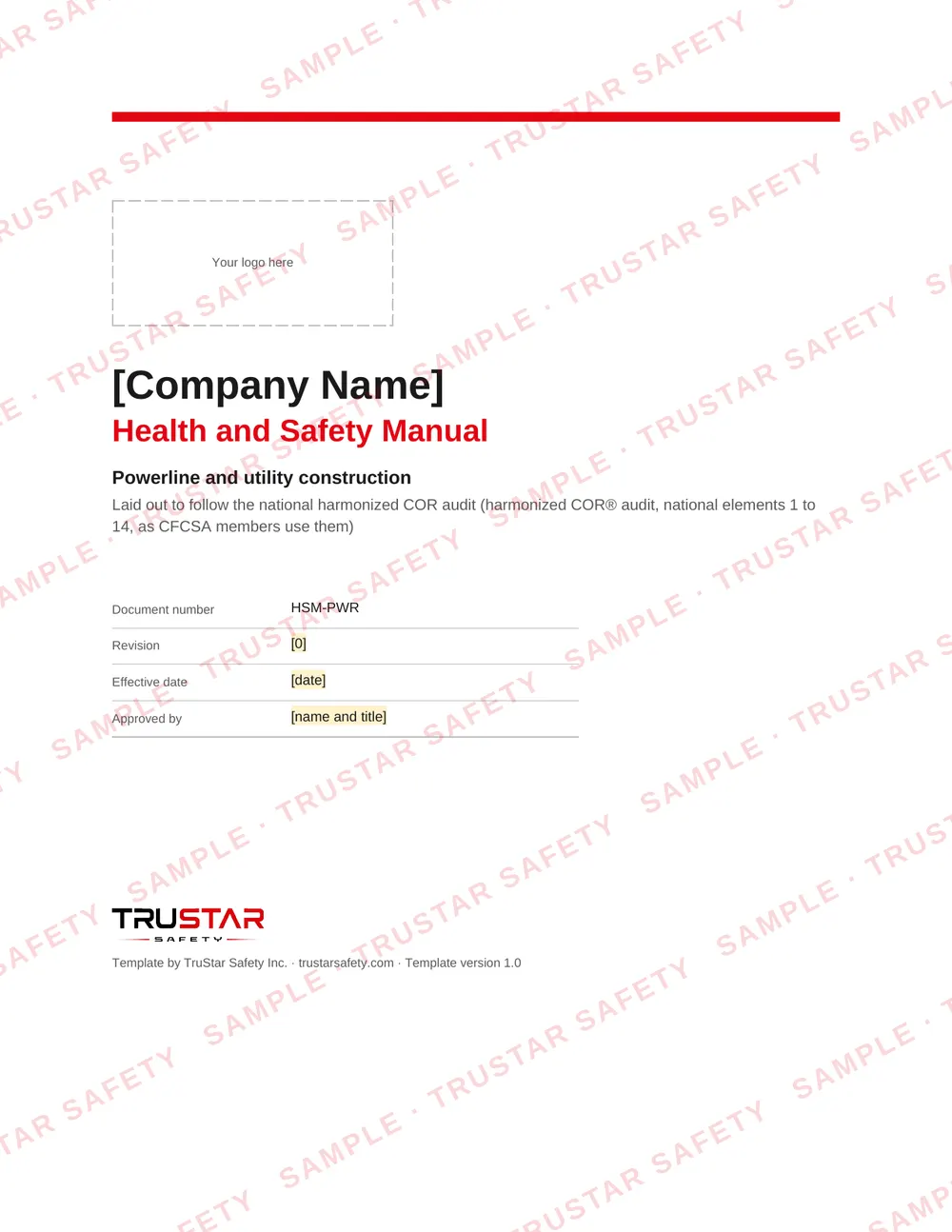

Cover with room for your logo and company name

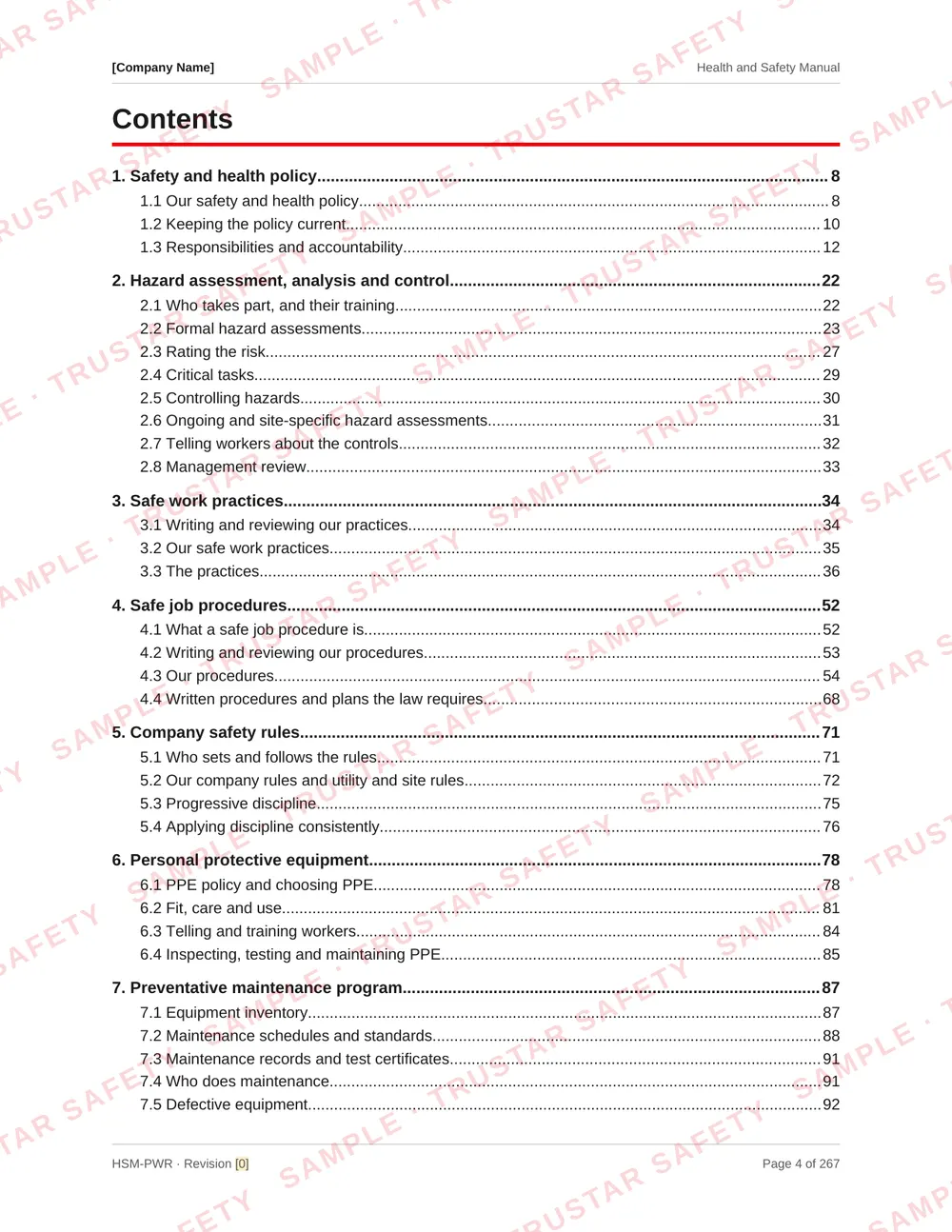

Linked table of contents, laid out on the 14 national COR elements plus a section on working across Canada

Section 3: eighteen safe work practices written for line and tree work, limits of approach shown

Section 15: each jurisdiction's rules for line work and tree work near power lines

Appendix A: all 74 documentation questions of the national COR elements mapped

Print-ready permits and forms: the work protection and grounding record shown

What’s in the manual

1. Safety and health policy

A signed, dated policy, the written program, and responsibilities for management, foremen and crew leaders, qualified line workers, apprentices, tree workers and flaggers, and how we work under the utility’s work protection system.

2. Hazard assessment, analysis and control

Formal hazard assessments by type of line and tree work, the 5 × 5 risk matrix, a critical task inventory, and the line worksite hazard assessment with voltages, approach distances, the utility’s guarantee and grounds.

3. Safe work practices

Eighteen practices for line and tree crews: limits of approach, work protection, testing and grounding, induced voltage and stringing, live-line work, bucket trucks, pole climbing, digger derricks, excavation, tree work near lines, chainsaws and chippers, traffic, storm restoration, weather, driving and working alone.

4. Safe job procedures

Step-by-step procedures for taking a line out of service and grounding it, setting a pole near energized conductors, stringing, rubber glove work, bucket set-up and rescue, pole-top rescue, trimming near a line and felling a hazard tree.

5. Company safety rules

Life-saving rules for line and tree crews, working under the stricter of our rules and the utility’s, and a progressive discipline process applied the same way every time.

6. Personal protective equipment

Class E hard hats, arc-rated clothing, rubber goods by class with their retests, climbing and fall restriction gear, and chainsaw protection.

7. Preventative maintenance program

Aerial devices and their dielectric tests, digger derricks, stringing equipment, grounds, hot sticks, rubber goods, chainsaws and chippers, and vehicles.

8. Training and communication

Qualified line workers and qualified tree workers, the utility’s work protection training, pole-top and bucket rescue practice, and tailboards every day.

9. Inspections

Worksites, guarantees and grounds, live-line set-ups, aerial devices daily and yearly, rubber goods and climbing gear.

10. Investigations and reporting

Contacts reported to the utility at once and to the regulator of the jurisdiction where it happened, underground strikes, wildfires, and investigations.

11. Emergency preparedness

Electrical contact, arc flash, pole-top and bucket rescue, tree incidents, storm work, wildfire and remote medical evacuation.

12. Statistics, records and document control

Work protection and grounding records, live-line permits, aerial device and rubber goods tests and rescue drills, kept for the longest period any jurisdiction requires.

13. Legislation

OHS law where the work is done, the federal laws that touch line and vegetation work, the standards and guidance the manual follows, and the right to refuse.

14. Procurement and contractor management

Working for utilities, subcontracted tree crews, and buying rubber goods, grounds, aerial devices and saws rated for the work.

15. Working across Canada

Whose law applies, then every province and territory and federal workplaces side by side: the act and regulation, the regulator, each jurisdiction’s rules for line work and tree work near power lines, serious incidents to report and how fast, and the other rules that change at the border.

Appendix A. COR cross-reference

Every one of the 74 documentation questions in the 14 national COR elements, what it looks for in plain words, the section that answers it, and whether the auditor will also want your records.

Appendix B. Forms

36 print-ready forms that match the manual, each with a form code: among them the line worksite hazard assessment, work protection and grounding record, live-line permit, aerial device inspection and stringing plan checklist.

Written for the work, not just the province

A line crew’s risks come from the system around it: a conductor that was never really dead, voltage induced from the next circuit, a boom swinging toward a line, a tree under tension, a rescue that has to happen in minutes. This manual is written around them, practice by practice and procedure by procedure.

You work under the utility’s work protection and guarantee. The manual says how yours and the utility’s fit together, and the stricter rule always wins.

One program for every province you work in

Your crews follow the occupational health and safety law of the province or territory where the line is, not where your office is. The manual sets your company’s rules once and gathers what changes at each border into section 15, so a supervisor starting work in a new province looks up what applies there.

It is laid out on the 14 national COR elements, so it suits a COR audit wherever you certify. Each certifying partner uses its own audit tool, so check it against yours; our provincial manuals follow each province’s audit exactly. No template can guarantee a certificate on its own, and we don’t claim to.

Who it is for

Powerline construction and maintenance contractors, civil and foundation crews on line projects, and utility vegetation management contractors working near energized lines.

A template is a starting point, not legal or engineering advice: a qualified person must adapt it to your work and your utilities’ rules before you issue it.

Lifetime updates

When the law changes, we publish a new edition and email everyone who bought the template. Every update is free, for as long as we publish it.

Version 1.0 October 16, 2026
- First edition, written for powerline and utility construction crews and laid out on the 14 national elements of the harmonized COR audit.
- Section 15 sets out the law and the rules for work near energized lines in every province and territory and federal workplaces, checked against the legislation in force on 15 October 2026.
